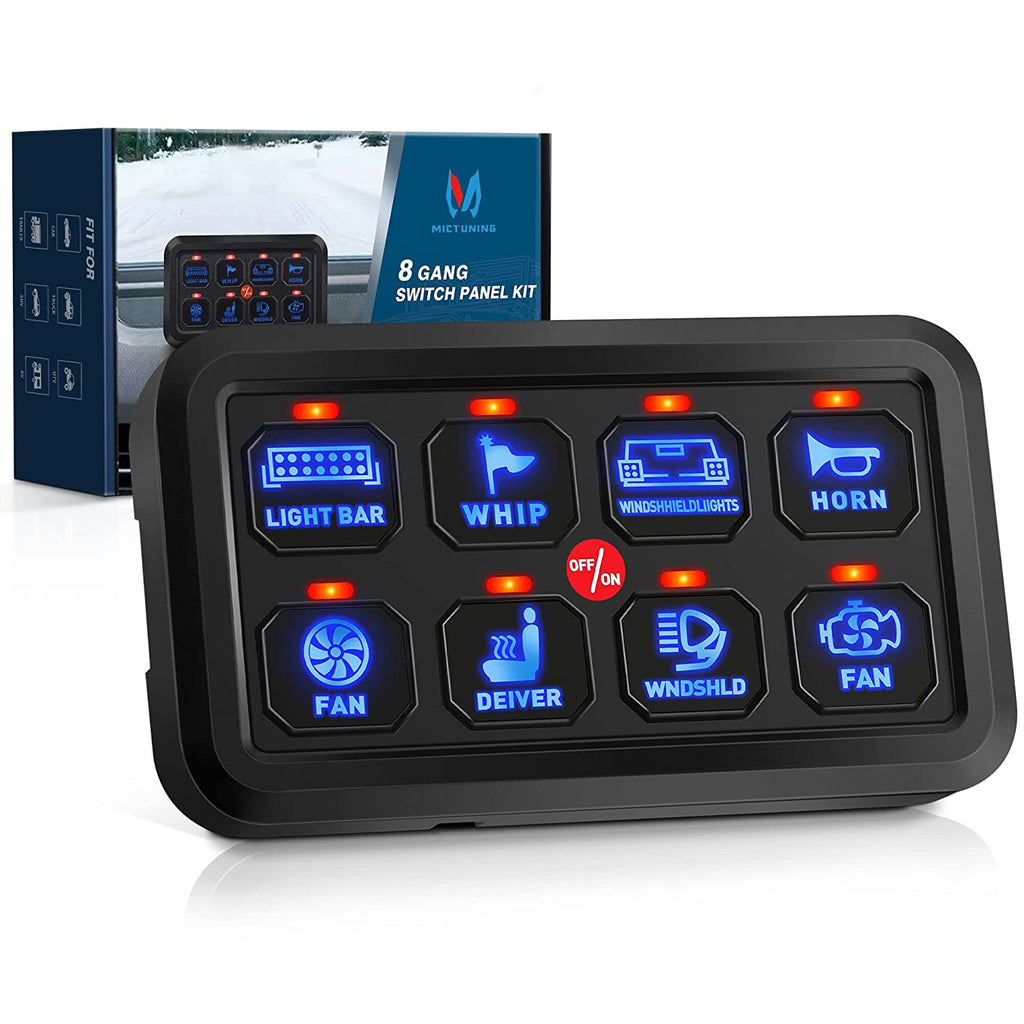

8 Gang Switch Panel Kit Multiple Modes ON/OFF Switch Touch Screen Circuit Control Box with Fuse Block Label Stickers


Price:
Sale price$139.90 Regular price$199.90

Description

1. 8 Gang Switch Panel Kit - Designed to control 8 LED lights or accessories at the same time. By this, you can only use a single panel to control everything and cleans up all wiring harness
2. Four Modes Setting - Not just "ON/OFF" switch for easy control, it can also adjust 4 modes: Steady On Mode, Momentary Mode, Reset Mode, Memory Mode, satisfy all your needs

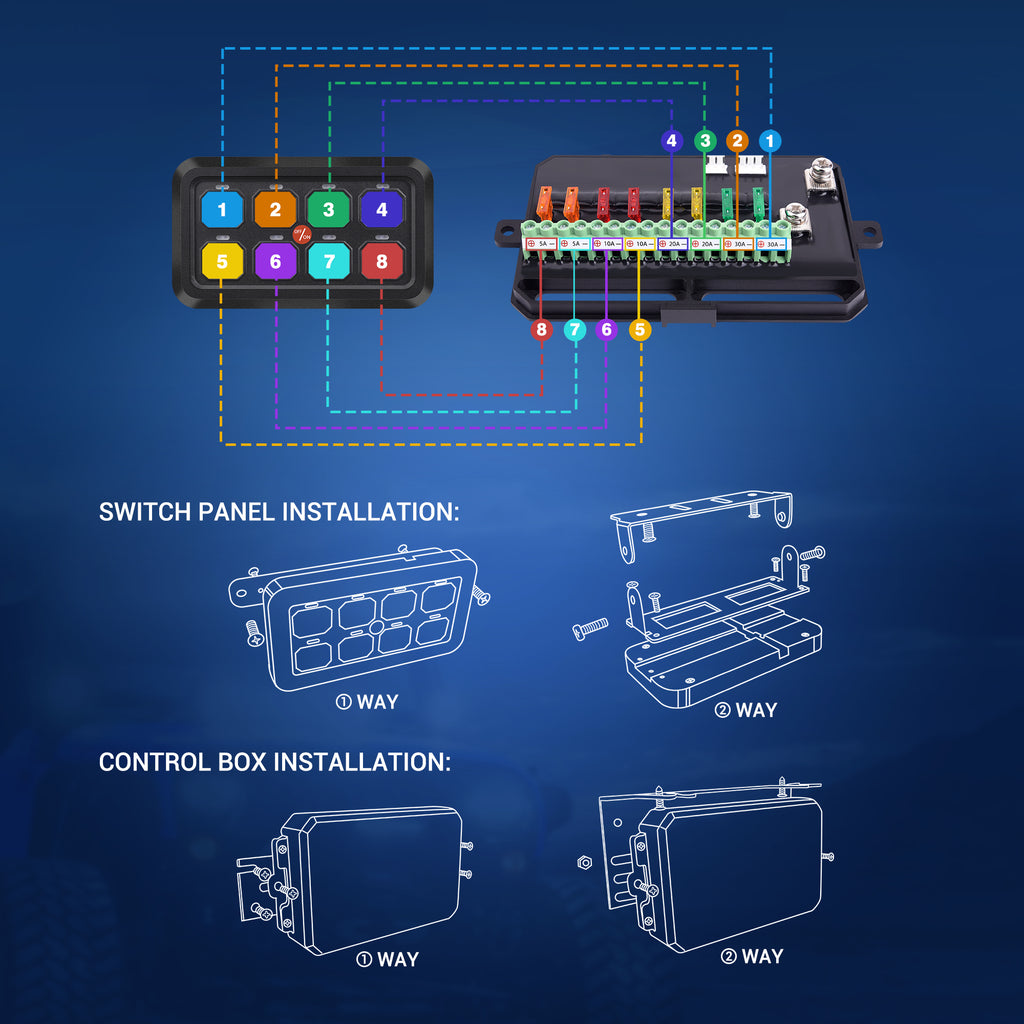

3. Easy Installation - Comes with all things for installation, no need to buy other parts. With different mounting bracket, you can install it anywhere you need. Bonus 50pcs labeling stickers included for DIY your specific need
4. Wide Compatibility & Safety Protection -Suitable for 12V/24V marine, car, truck, off-road, ATV/UTV, boat, yachts, Caravans, etc. 8 Gang Switch Panel has reverse polarity protection, over-voltage protection and over-current protection

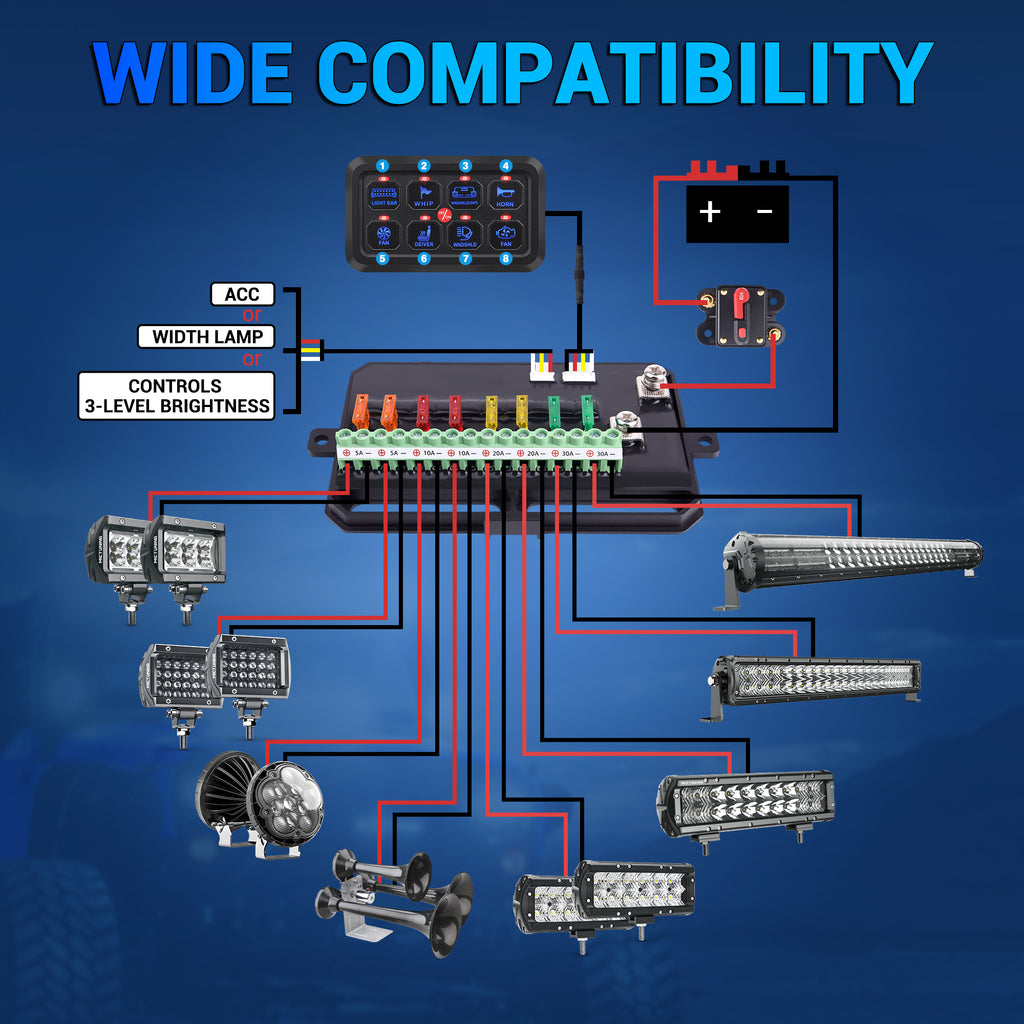

Wire Connection:

  • The red cable is used as the master switch electric cable, connecting to the ACC. If you want to light up the LED lamps before the car start-up, please connect the red cable with the battery anode. However, this actions not highly recommended. Because the higher the power is, the sooner the battery will be consumed.
  • The yellow cable is regarded as the width lamp of the master switch panel.

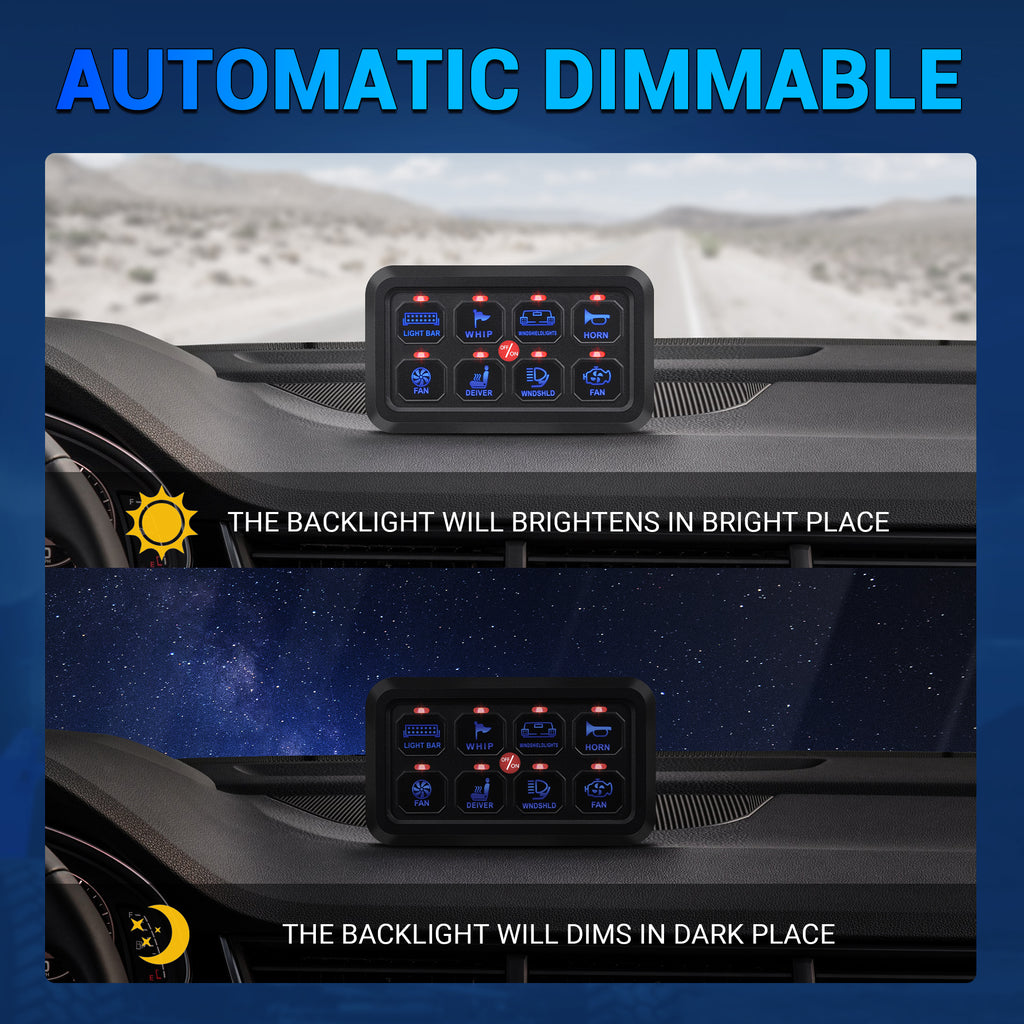

  • The white cable controls 3 different brightness levels of the switch panel. If you just want to have the brightest switch panel, you can disconnect it.
  • Steady On Mode:

Steady On Mode:
Long press ON/OFF switch for 3~5 seconds, the button light will flash, then enter the steady on setting mode.

Momentary Mode:
Step 1: Long press ON/OFF switch for 3~5 seconds, the button light will start to flash (it will flash slowly when enter the steady on setting mode).
Step 2: Short press ON/OFF switch to enter the momentary mode (the button light flashes rapidly).
Step 3: Click the button that you need momentary mode, long press ON/OFF switch for 3~5 seconds. The setting is successful until the button light does not flash.

Reset Mode:
Step 1: Long press ON/OFF switch for 3~5 seconds, the button light will flash slowly and enter the steady on setting mode.
Step 2: Click all the button to light up.
Step 3: Long press ON/OFF switch again for 3~5 seconds, it is OK to reset.

Memory Mode:
With memory function, it keeps the same mode after you turn off and then turn on again.

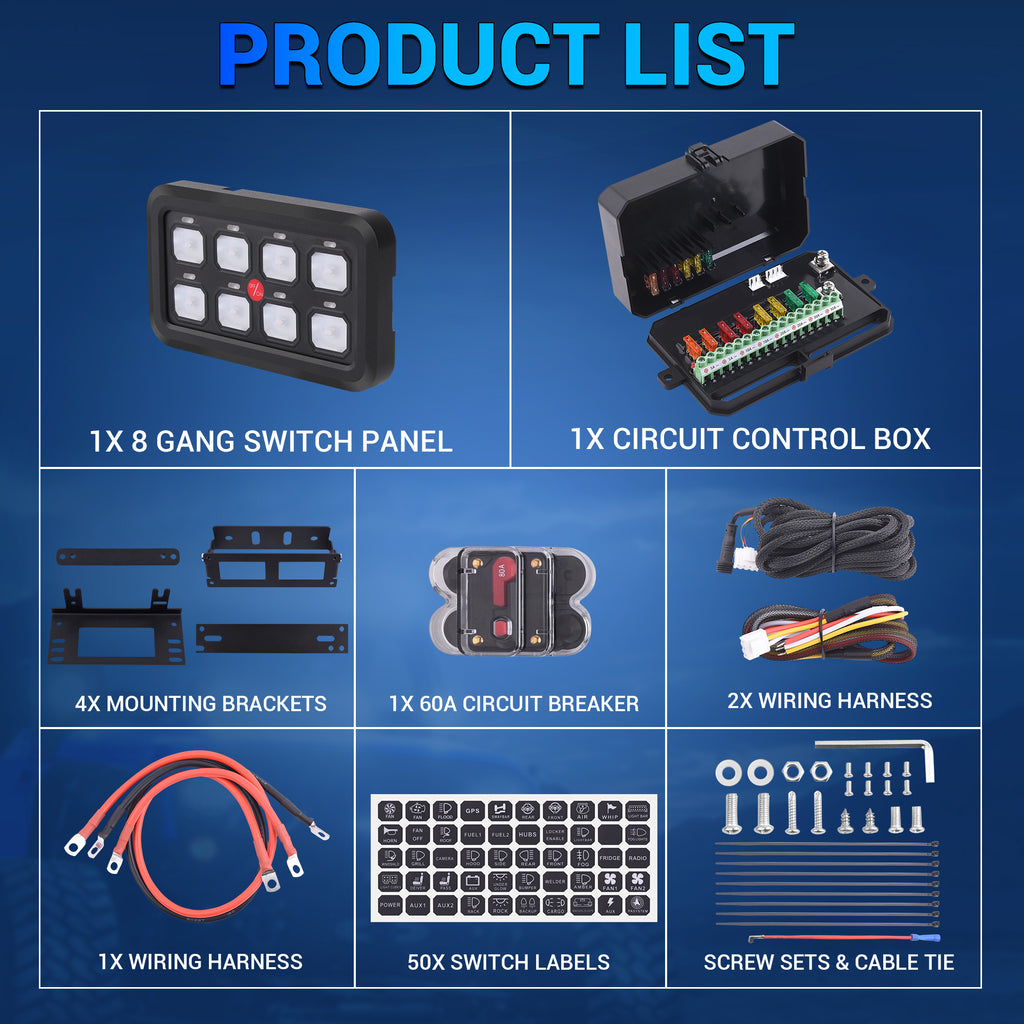

Package Included:

  • 1x 8 Gang Switch Panel
  • 1x Circuit Control Box
  • 1x 60A Circuit Breaker
  • 50x Switch Labels
  • 4x Necessary Mounting Brackets
  • 9x Cable Ties
  • Screw Sets & Wiring Harness

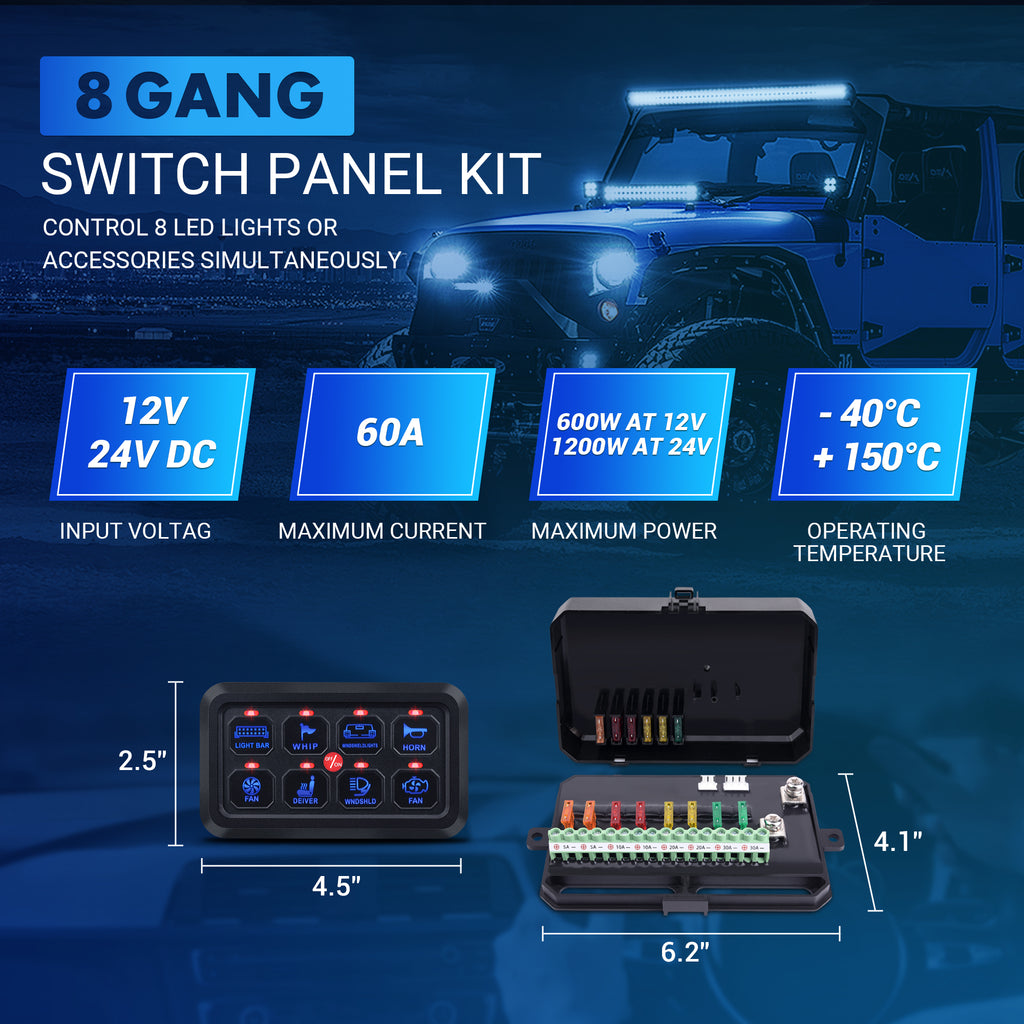

Specification:

  • Input Voltage: 12V/24V DC
  • Maximum Power: 600W at 12V/1200W at 24V
  • Maximum Current: 60A
  • Operating Temperature: - 40°C ~ + 150°C
  • Maximum Instantaneous Current: 100A
