MICTUNING DC 12V 30/40 Amp 5pin SPDT Relay - LED Light Bar Replacement Relays 10 Pack

SKU: MIC04-JDQTZ

Price:
Sale price$14.90

Description

1. High Performance - 40A Switching Capability ,12V DC.Suitable for MICTUNING Heavy Duty(HD) LED Light Bar Wiring Harness Kit.

2.Multiple Contact Types - It has the features that one is a group of normally open, a group of normally closed, a group of conversion.
a group of movement (two 87 feet), a set of static contact, total five contact types.

3.Professional Construction - the 5-prong relays are SPDT designed (single pole double throw), it's able to open or close a circuit, greatly used for car lights, fog lamps, wiper, starter, fans, speakers, traction control systems, etc.

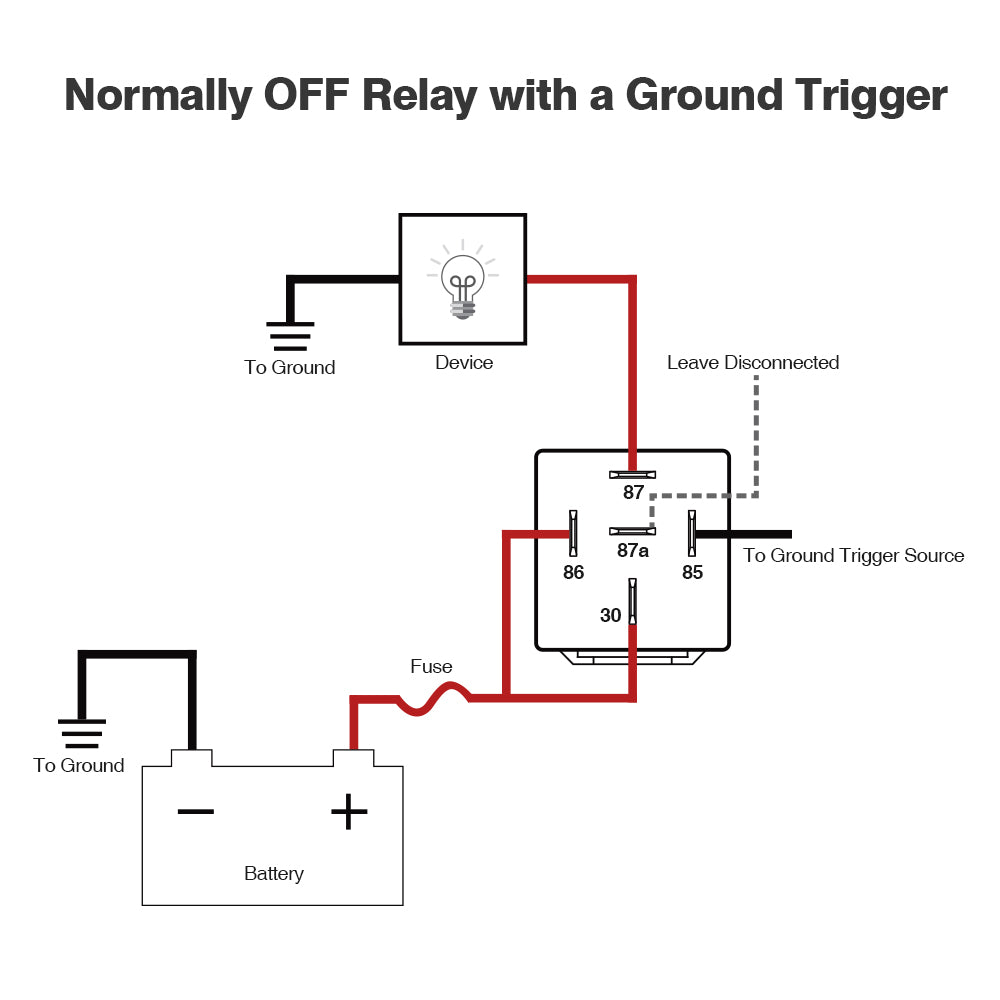

4.Easy Installation - Multiple work methods ,product come with detailed different work way of this type relay(attached in ads photos),don't worry how to make them work,just choose your favorite work methods.

5.Wide Application - Wide range of use, greatly used for car lights, fog lamps, wiper, starter, fans, speakers, traction control systems, etc

Pin Instrucctions: Ground (85), VDC (30), Trigger (86), Output N/C (87a), and Output N/O (87).

Package Included:

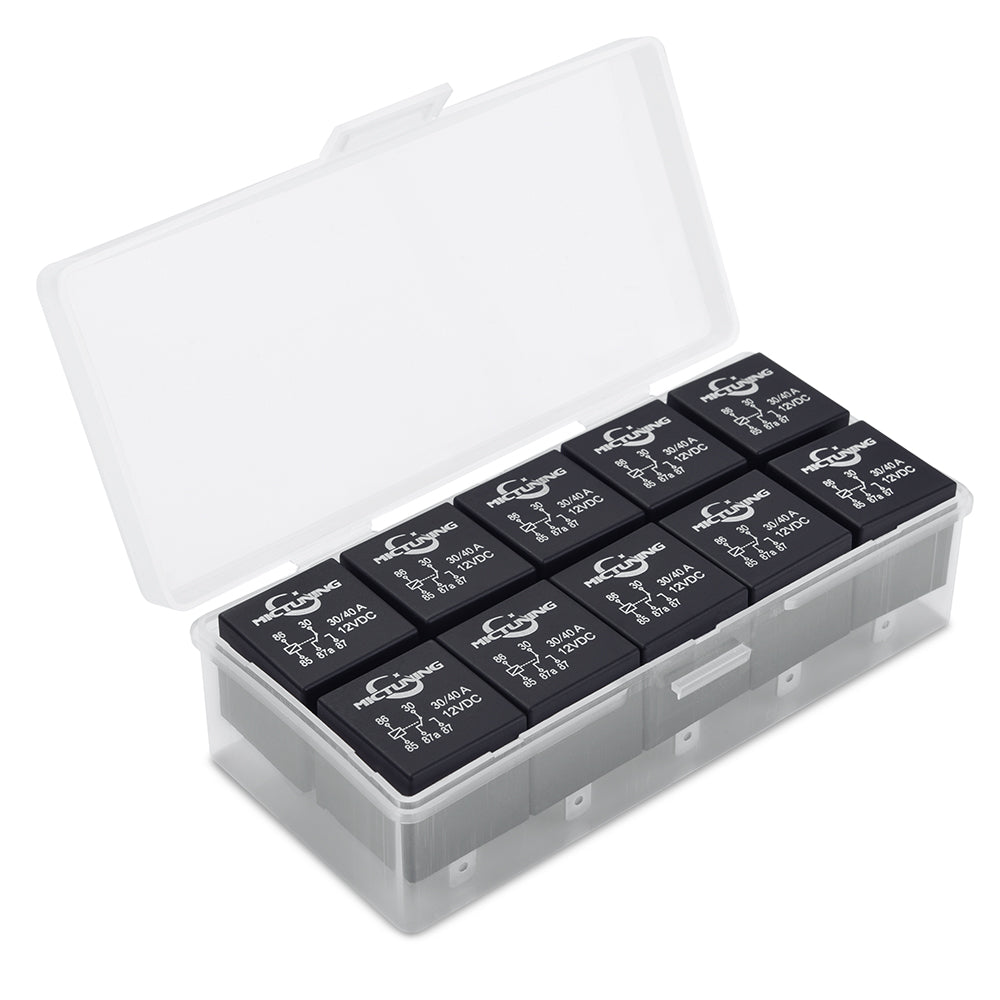

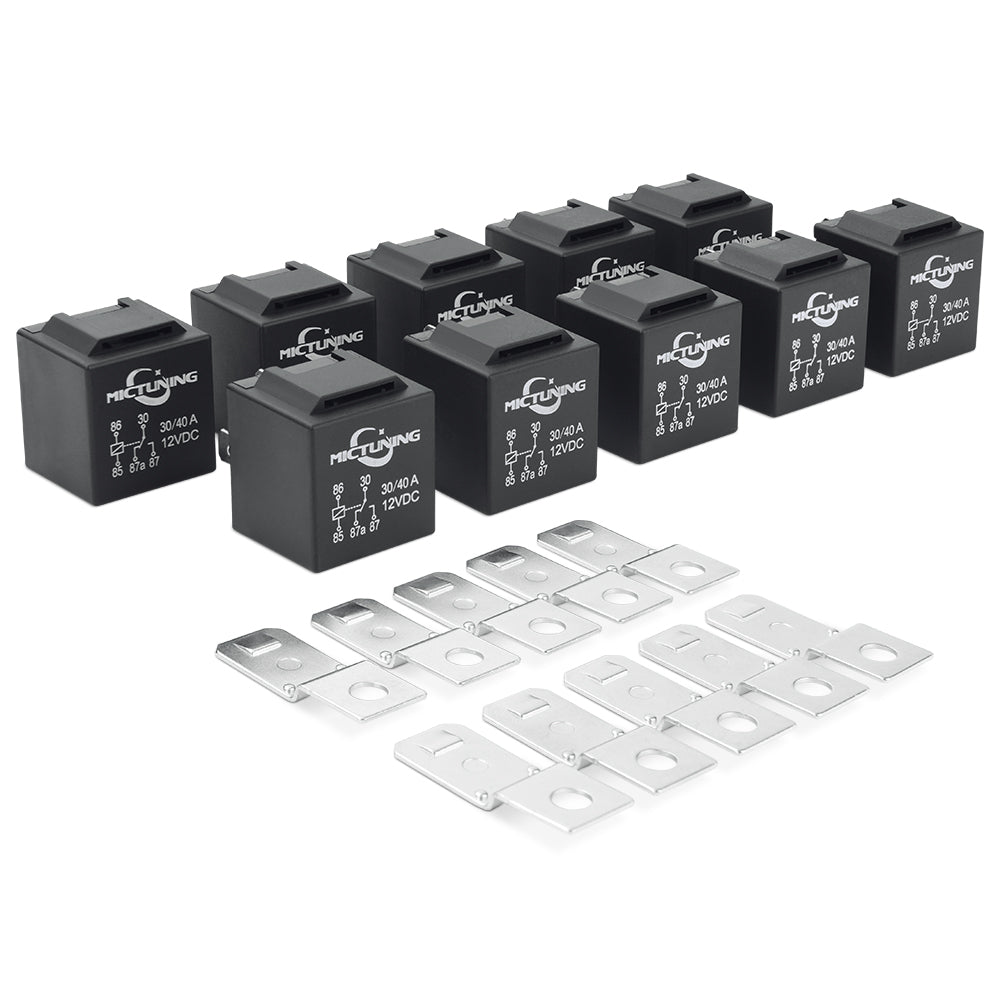

10x Relays


MICTUNING was founded in 2013. At the beginning of its establishment, we always adhere to high quality and build a highend brand, aiming to become the TOP brand in the field of car modification! We are devoted to researching and developing products with reliable performance and manufacturing a series of high quality products. MICTUNING are exported to North America (US, CA), Europe, Japan, etc., Through 9 years of growth and creation,  MICTUNING is renowned in North America today. We hope to work together to expand MICTUNING's local market.We hope that more regional sales partners can join us (dealer@mictuning.com) and become MICTUNING's partners to build our TOP brand together.

Specifications :
Contact Form: 1A, 1B, 1C, 1U, 2A
Max,Operating Current :40A
Max.Operating Voltage : 27VDC
Rated Load(Resistive load) : 1A:40A 13.5VDC 20A 27VDC 1C:NO/NC 40A/30A 13.5VDC 20A/15A 27VDC
Insulation Resistance : 100MΩ
Operate/Release Time : 10ms/10ms

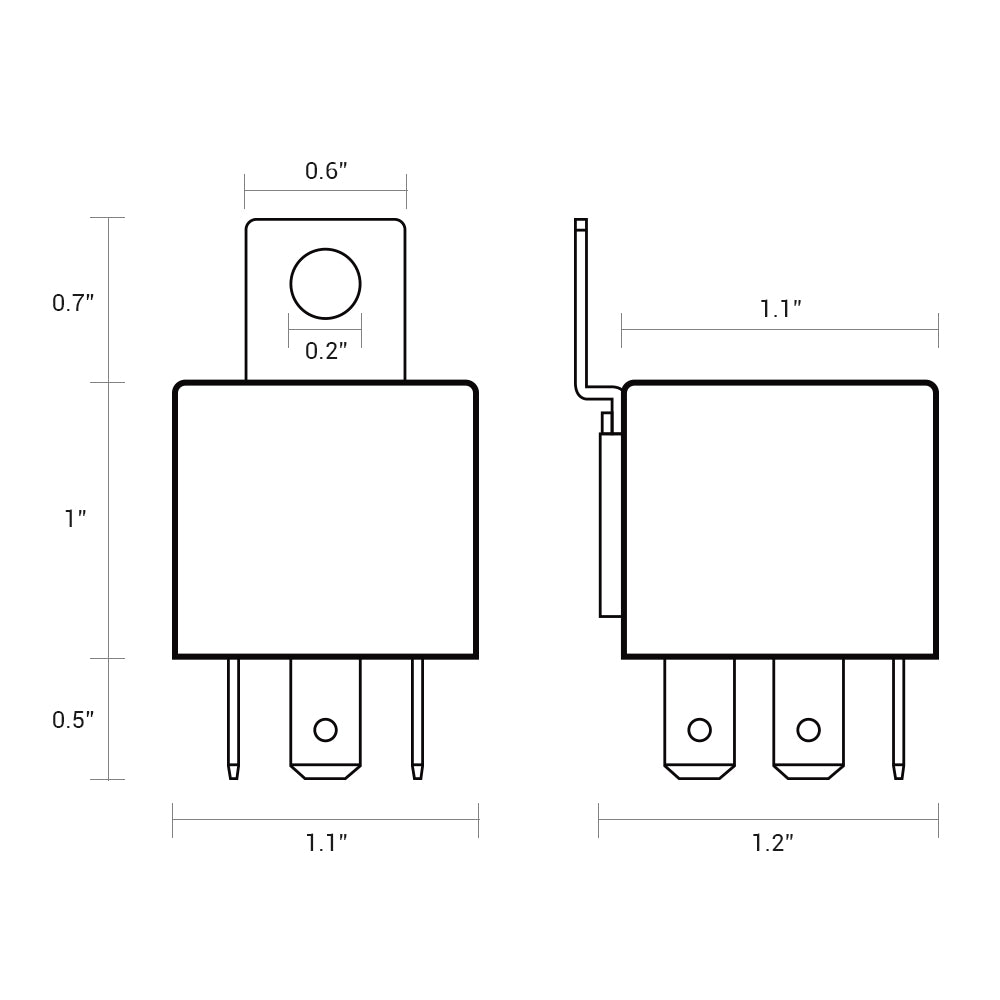

Outline dimensions: 25.0X27.4X28.4(mm)
